R Studio Interface

Understanding the RStudio Interface

Introduction to RStudio Interface

RStudio is an Integrated Development Environment (IDE) for R, designed to make your workflow more productive and organized. It provides a user-friendly interface with multiple panes, each serving a specific purpose. This guide will walk you through the key components of the RStudio interface: Console, Script, Environment, Plots, Packages, and Help.

RStudio Interface Overview

When you open RStudio, you’ll see four main panes:

Console: Where you can type and execute R commands directly.
Script Editor: Where you write and save your R scripts.
Environment/History: Displays the workspace variables, data, and command history.
Plots/Help/Packages: Used for visualizations, documentation, and package management.

You can customize the layout of these panes by dragging and dropping them.

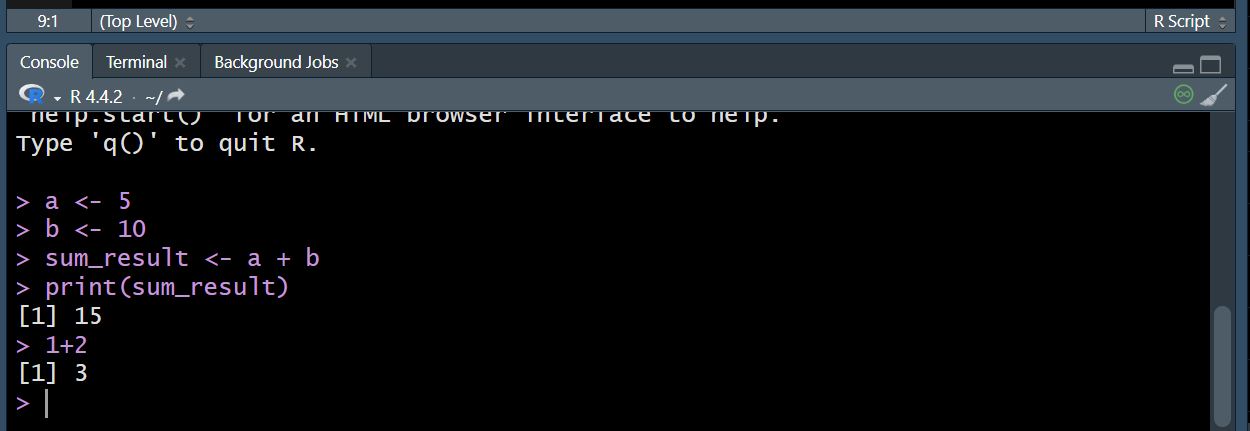

1. Console

The Console is where you can type R commands and see the output immediately. It is the heart of RStudio, allowing you to interact with R in real-time.

Key Features:

Execute commands by pressing Enter.
View output, warnings, and error messages.
Access previous commands using the up/down arrow keys.

Example:


# Type a command in the Console
print("Hello, RStudio!")

2. Script Editor

The Script Editor allows you to write, edit, and save R scripts. Scripts are useful for writing longer pieces of code that you want to reuse or share.

Key Features:

Write and save R scripts with a .R extension.
Run code line-by-line or in chunks using Ctrl+Enter (Windows/Linux) or Cmd+Enter (Mac).
Syntax highlighting and auto-completion for easier coding.

Example:


# Create a script in the Script Editor
x <- 10
y <- 20
z <- x + y
print(z)

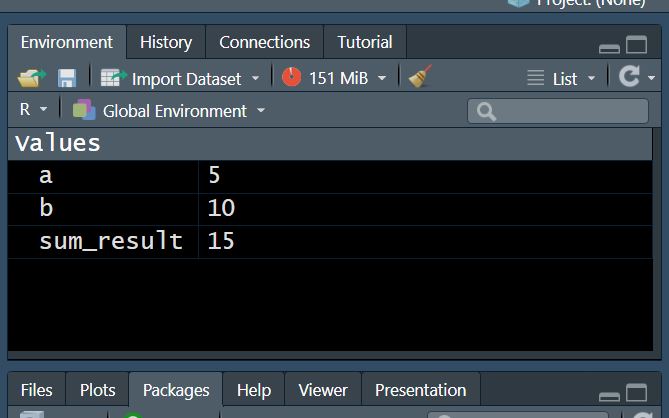

3. Environment/History

The Environment tab shows all the objects (variables, datasets, functions) currently loaded in your workspace. The History tab keeps a record of all the commands you've executed in the Console.

Key Features:

View and manage workspace objects.
Import and export datasets.
Access your command history to reuse previous commands.

4. Plots

The Plots pane displays graphs and visualizations generated by R. You can create a wide variety of plots using packages like ggplot2 and plot.

Key Features:

View and export plots in various formats (PNG, PDF, etc.).
Zoom in/out and navigate through multiple plots.

Example:


# Generate a plot
plot(1:10, type="l", col="blue", lwd=2, xlab="X-axis", ylab="Y-axis", main="Sample Line Plot")

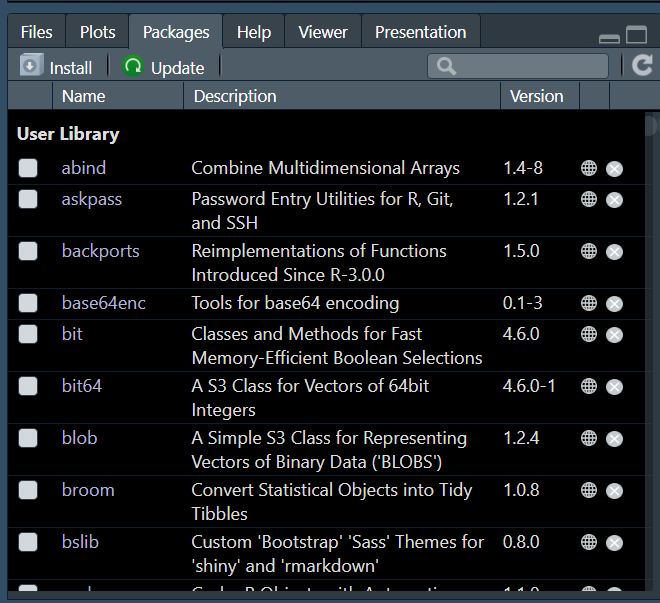

5. Packages

The Packages tab allows you to manage R packages. Packages extend the functionality of R by providing additional functions, datasets, and documentation.

Key Features:

Install, update, and remove packages.
View loaded and available packages.

Example:


# Install and load a package
install.packages("ggplot2")
library(ggplot2)

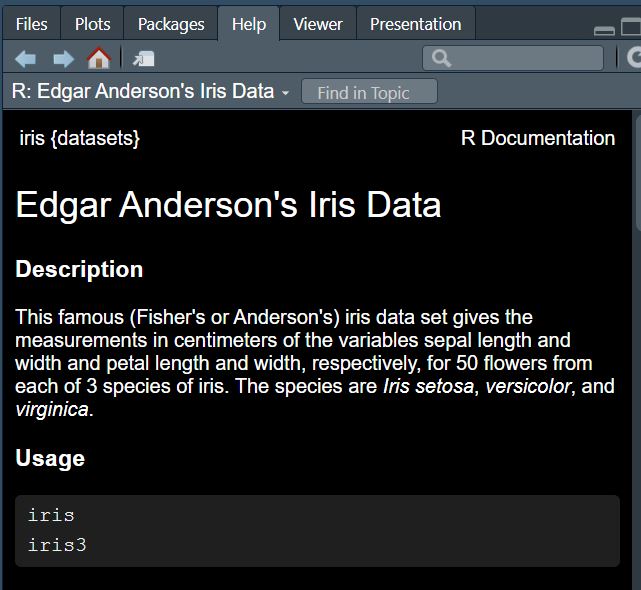

6. Help

The Help tab provides access to R's extensive documentation. You can search for functions, packages, and other resources to get detailed information.

Key Features:

Search for help on specific functions (e.g., ?print).
Access package vignettes and manuals.

Example:


# Access help for the print function
?print

Practical Exercise

Try the following steps to familiarize yourself with the RStudio interface:

Open RStudio and locate the Console.
Type print("Hello, RStudio!") in the Console and press Enter.

Create a new script in the Script Editor and write the following code:


# Create variables
a <- 5
b <- 10

# Calculate the sum
sum_result <- a + b

# Print the result
print(sum_result)

Run the script line-by-line using Ctrl+Enter (Windows/Linux) or Cmd+Enter (Mac).
Check the Environment tab to see the created variables.
Generate a plot using the code provided in the Plots section.
Install the ggplot2 package and explore its documentation in the Help tab.
